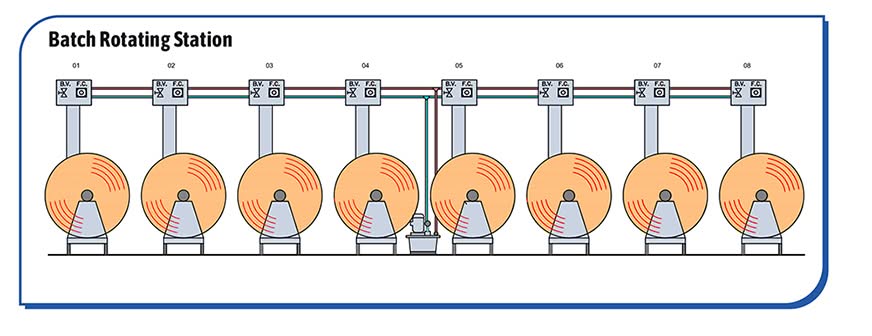

Batch Rotating Station:

  • Suitable for handling 06/08 batches (Maximum batch dia of 1800mm for 1800mm to 3400mm working width)
  • One Hydraulic Power Pack with Oil Pump, Coupled to 3/5 HP motor, pressure gauge, relief valve
  • Each station contains:
    • One Hydraulic Oil motor with quick coupling
    • One Valve for starting/stopping station.
    • One Flow Control valve on each station.
    • Two Hydraulic hoses

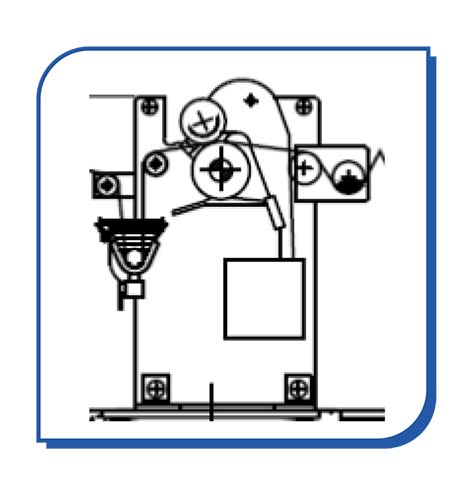

  • Linear pressure 50N/mm:
    • Uniform padding pressure across the fabric width,short cloth passage with extreme low fabric tension.
    • Drive roller is the press roller and the driven roller can be shifted upwards.
    • Gap pressure higher on the left than on the right and in the middle.
    • Gap pressure higher on the edges than in the middle.
    • Gap pressure uniform over the whole roller width.
    • Gap pressure higher on the right than on the left and in the middle.
    • Gap pressure higher in the middle than on the edges.
